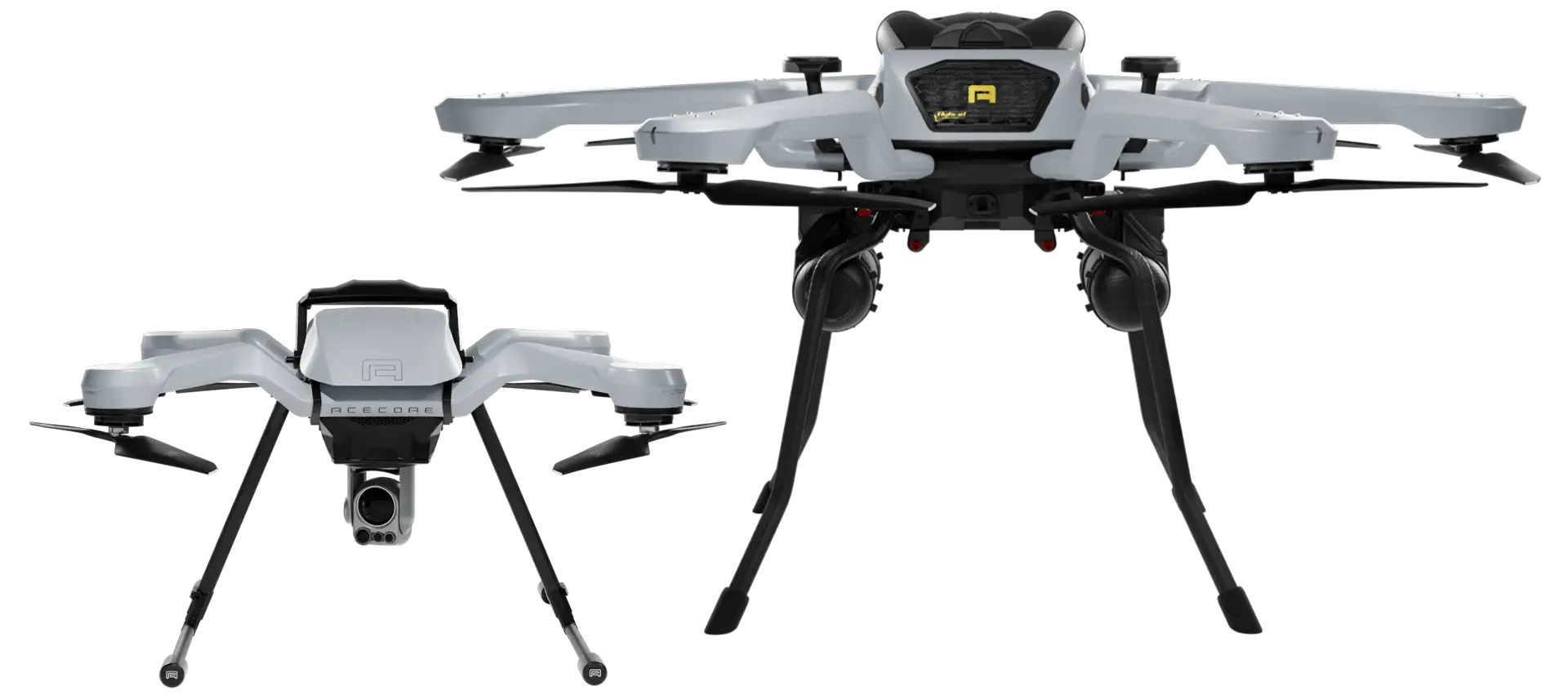

M-SPEC
Government line
Acecore’s line of government-approved UAVs: real-world proven assets to your mission. Configured to the customer’s wishes, with a range of datalink options to fit in existing networks.
Ready for any mission.
Fly with confidence
-
Highly wind and rain-resistant
-
Long real-world endurance
-
Large payload capacity

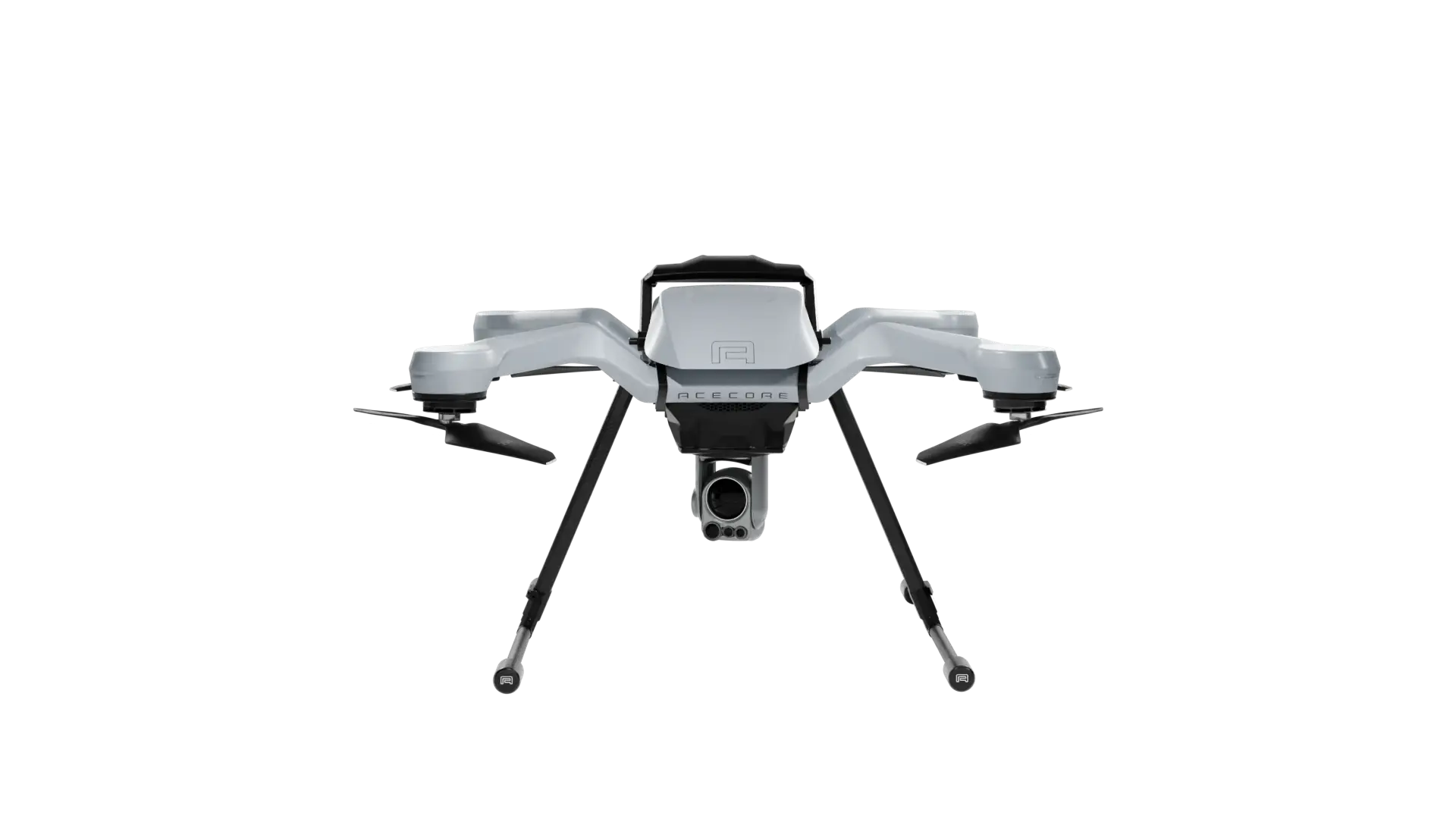

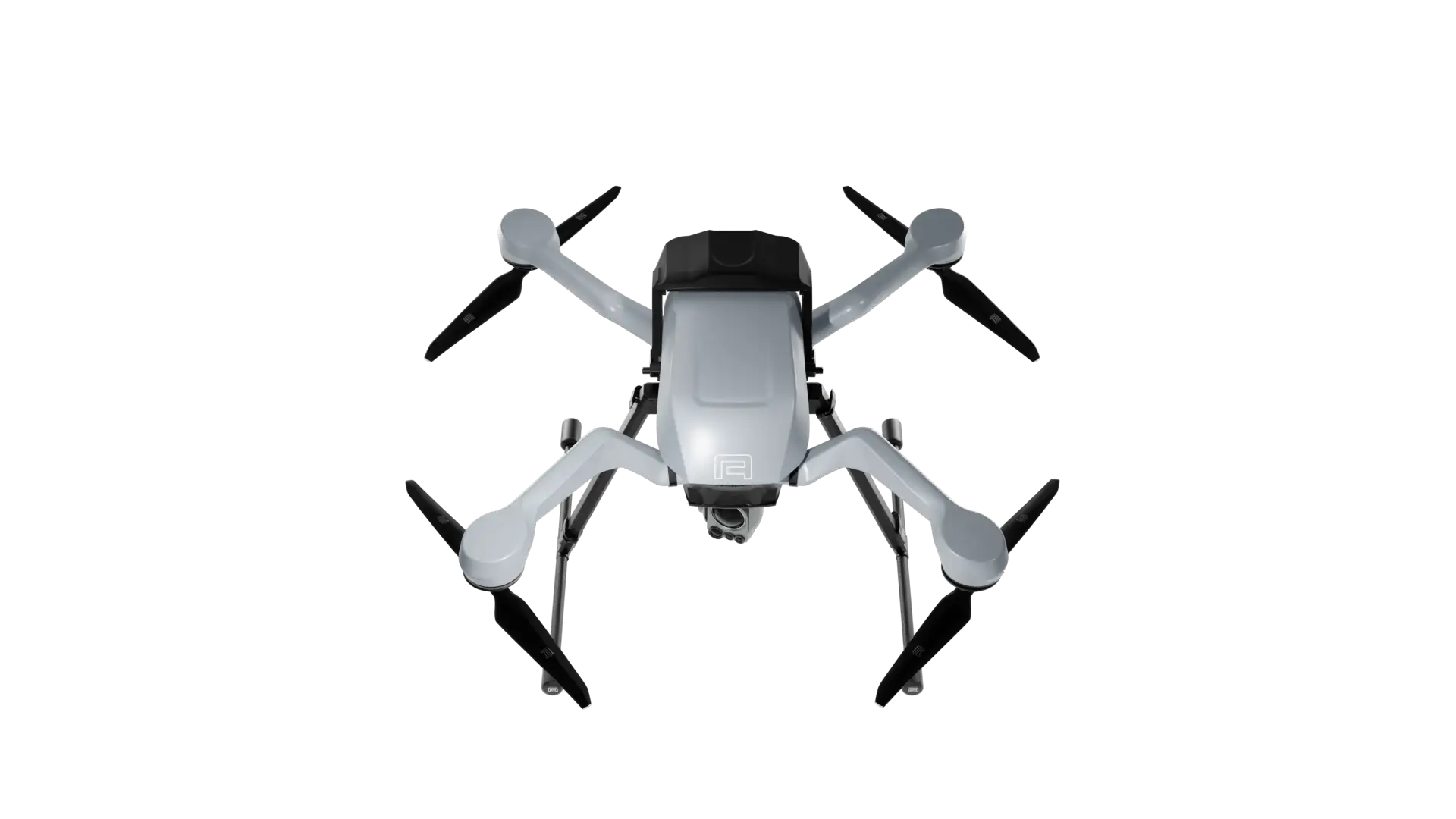

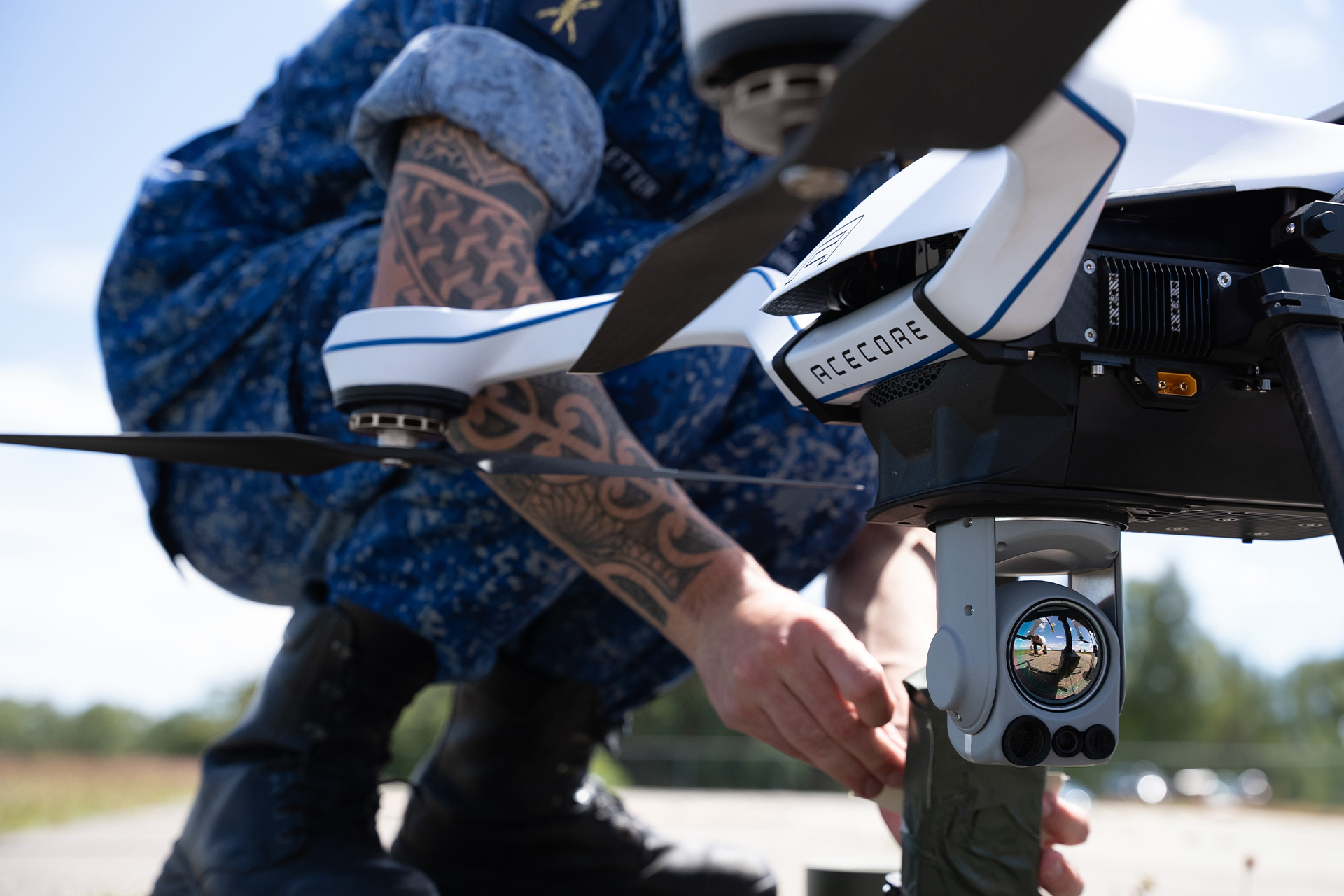

M4

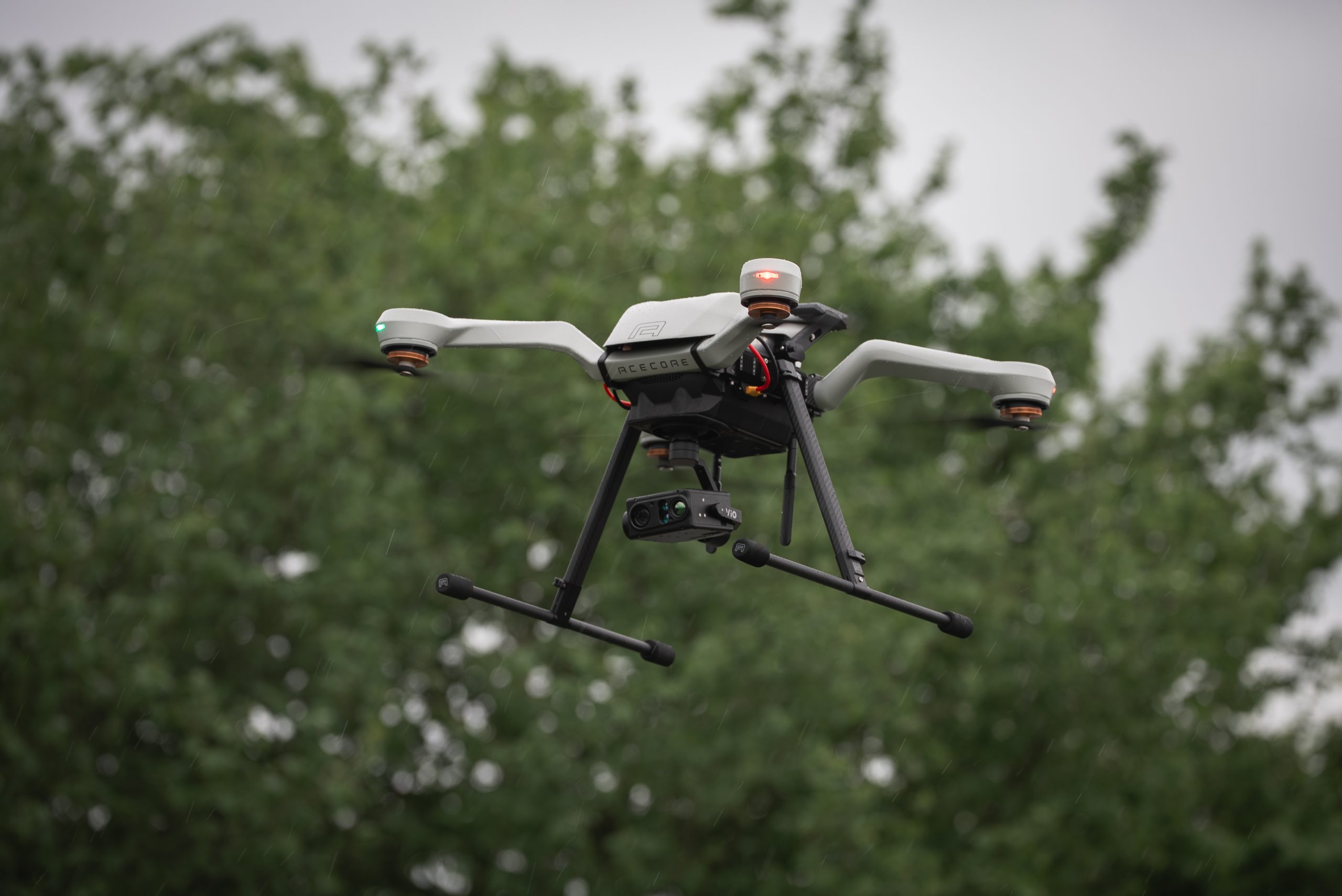

ZOE x4

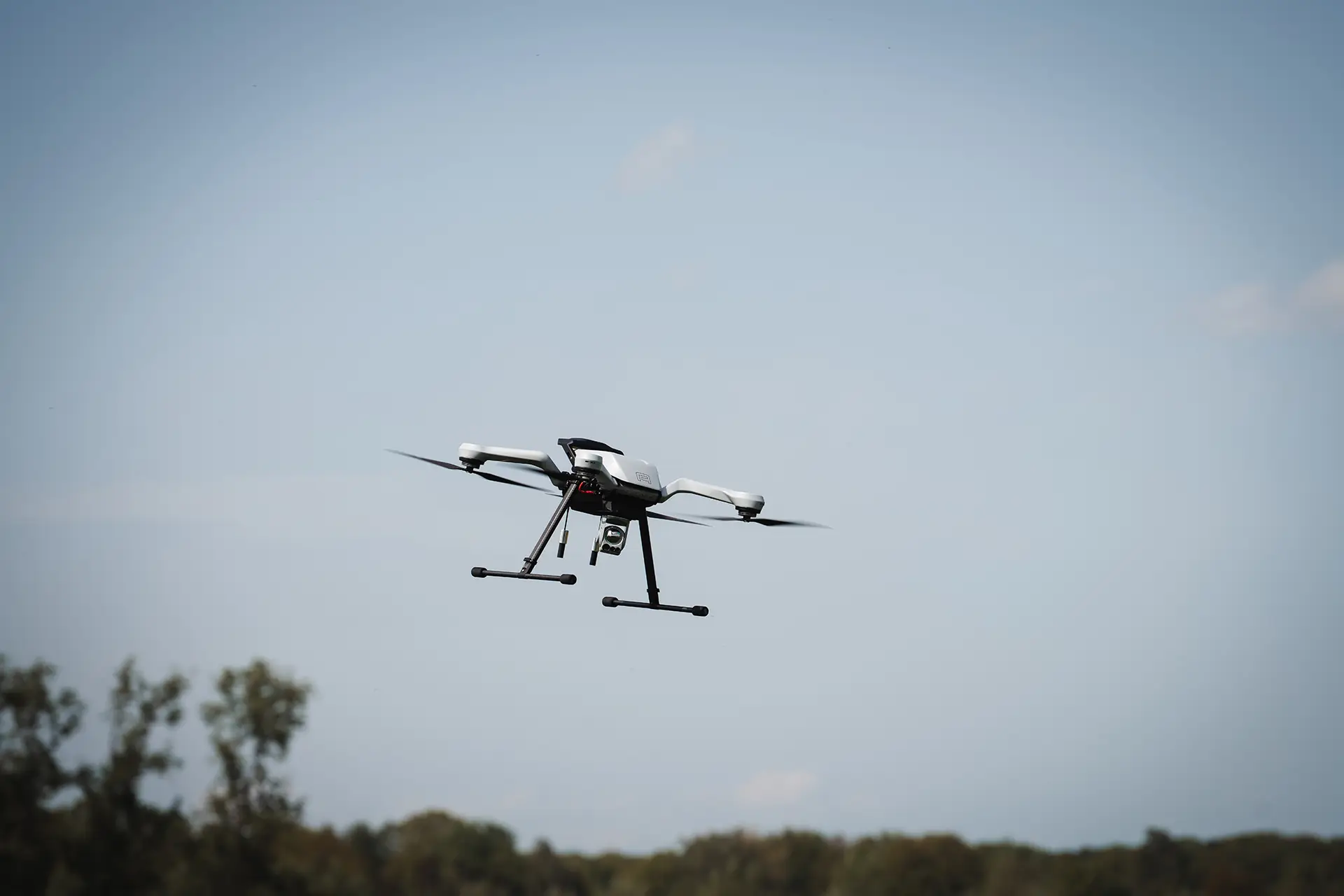

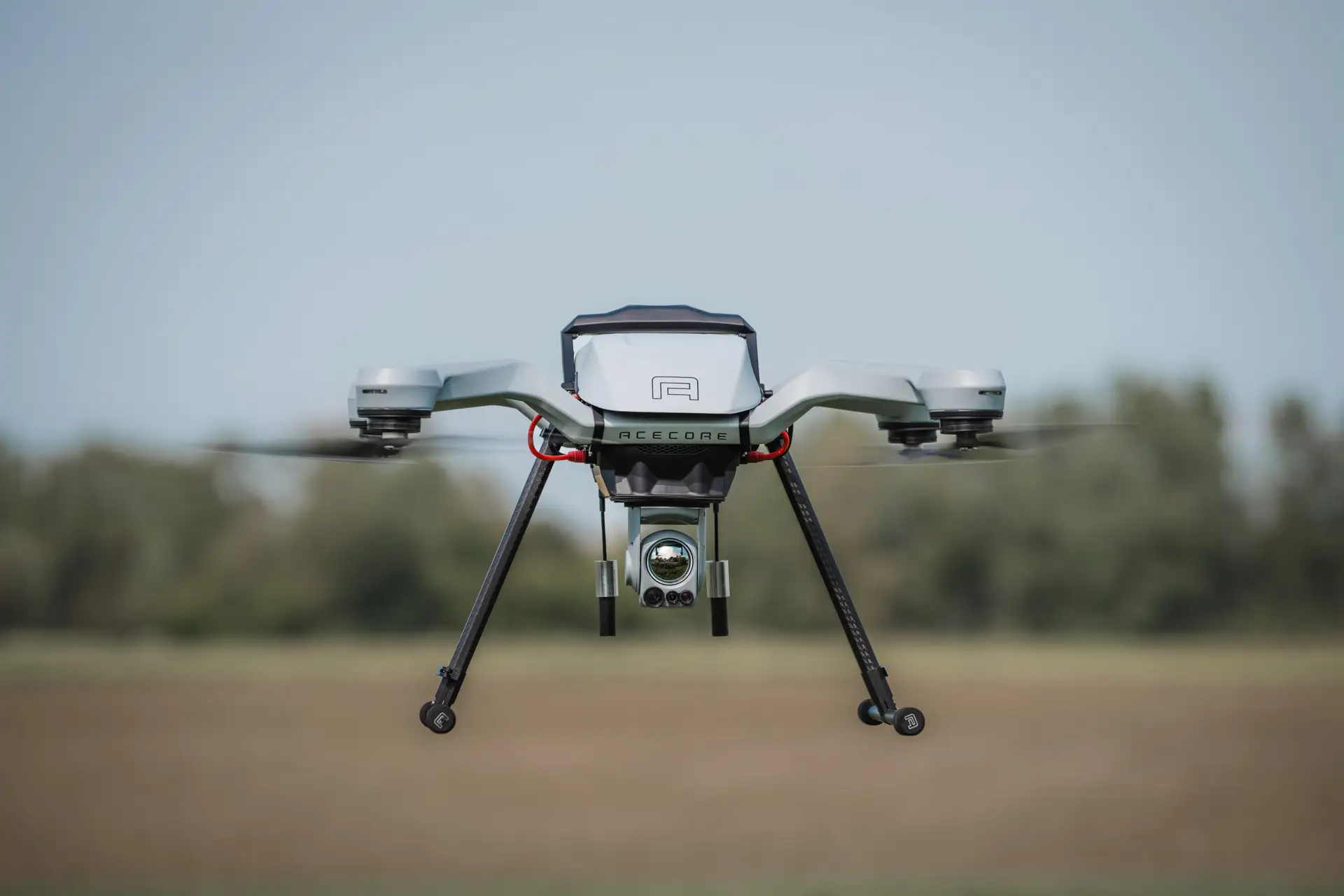

The M4 is a military quadcopter renowned for its high performance, redundancy, and extended endurance. It is equipped with the NextVision Raptor X80, which offers a long-range EO/IR stabilized image with 80x zoom and a 1280×720 thermal resolution.
The M4 is controlled via the Acecore Signav Ultra. Users may choose between the Persistent Systems MPU5, Silvus Streamcaster, or Doodle Labs smart radio.
Payload capacity
Flight time
Wind resistance
Max. takeoff weight
4.2 kg / 9.26 lbs
47 minutes
29 knots
10.5 kg / 23.15 lbs
Frame dimensions
Flight controller
Operating temp.
Max. downfall
Cruise speed
Max. speed
693x682x524 mm
Cube Orange+, Blue+
-15°C to 50°C
10 mm/h, 30mm/3h
3 m/s to 9 m/s
91 km/h

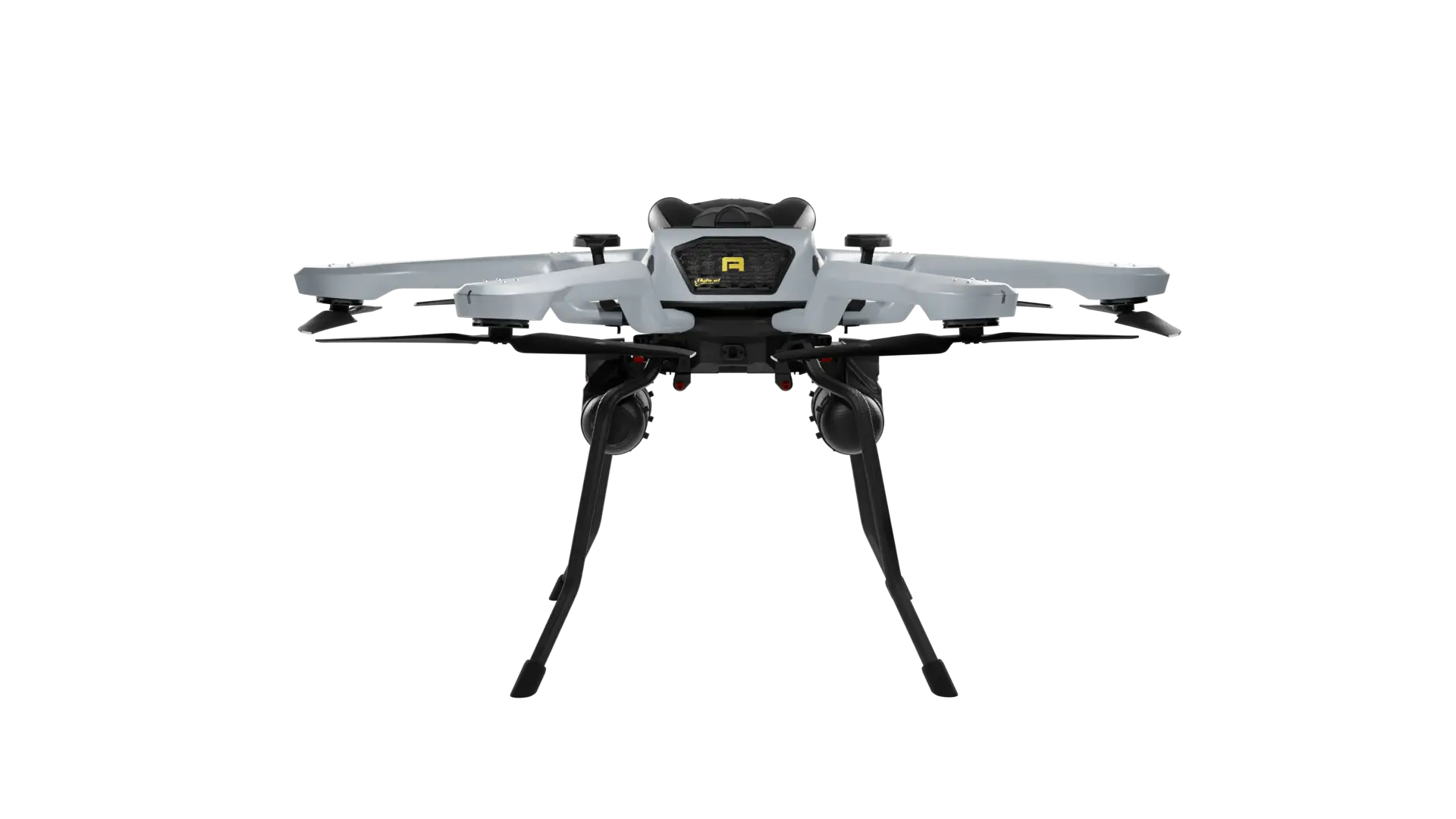

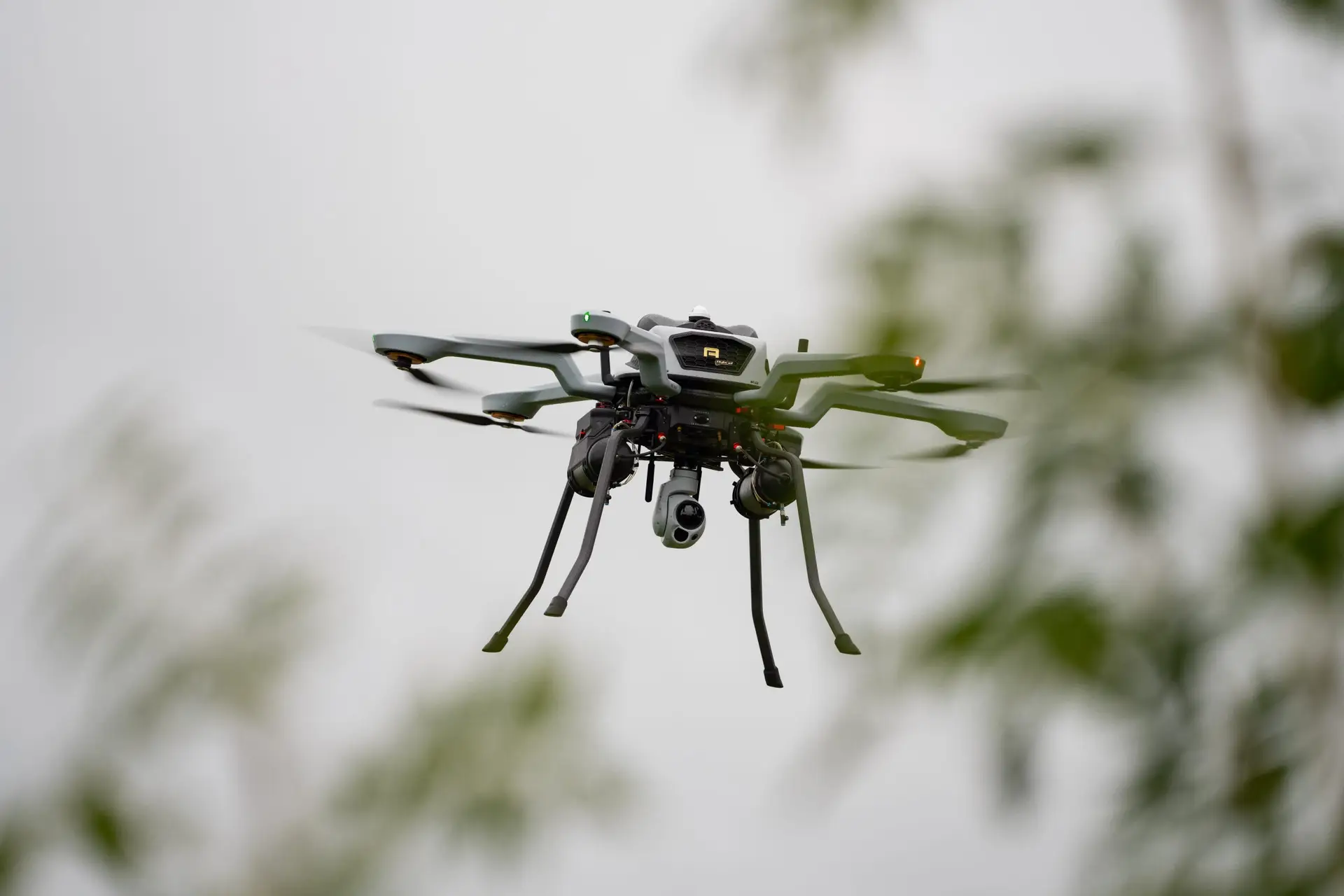

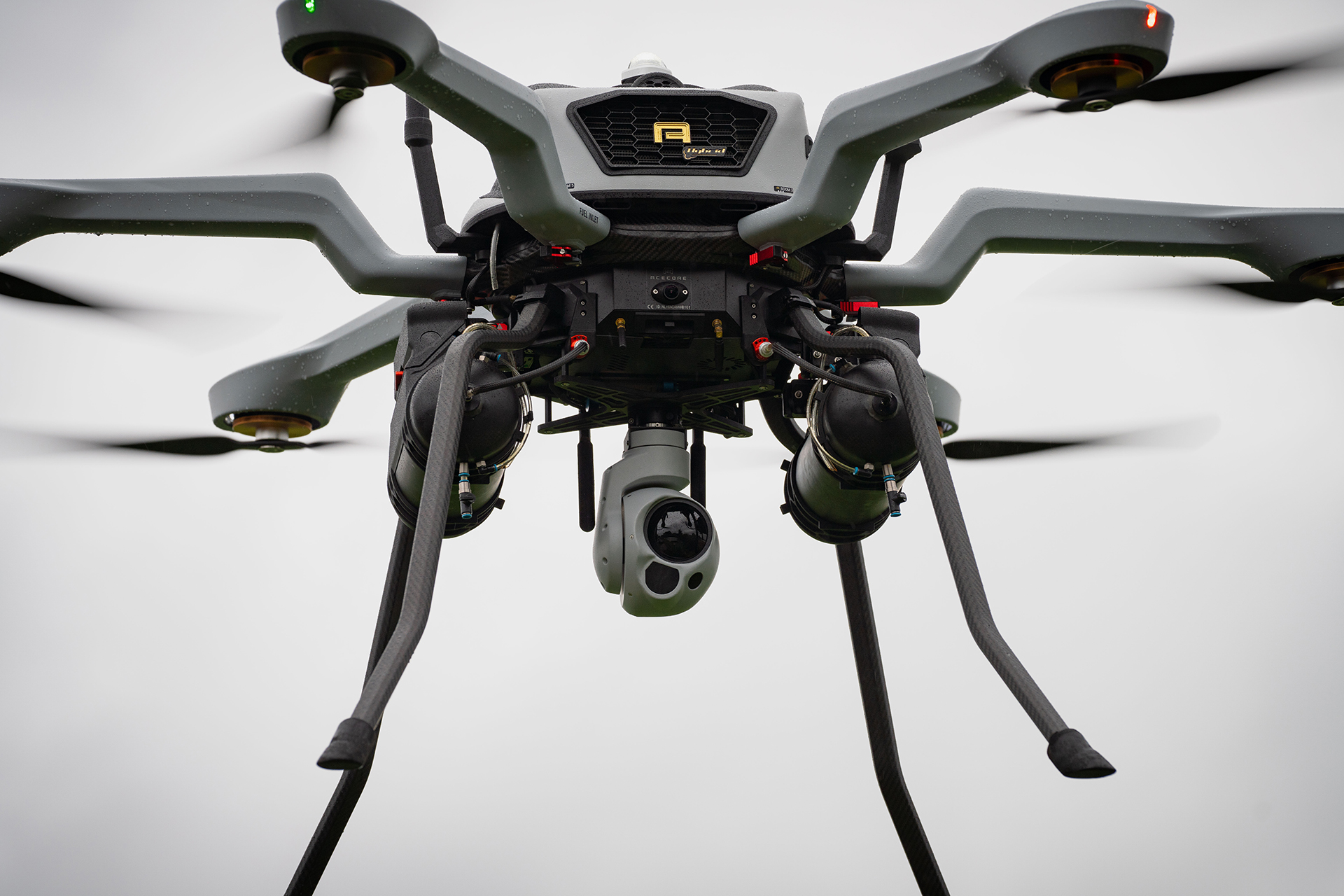

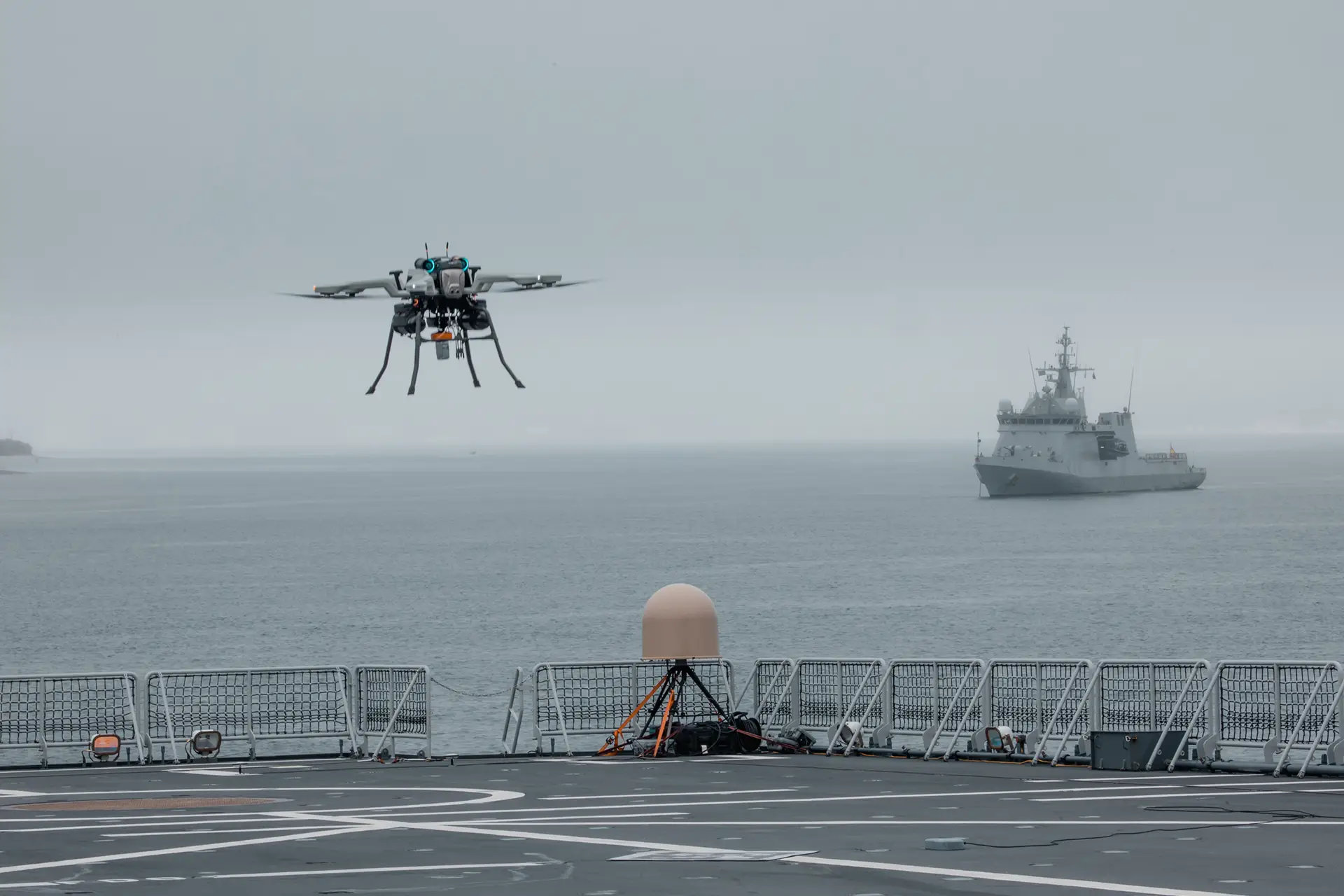

M6
NOA HYBRID
The M6 is a military hexacopter, a trusted platform thanks to its high performance, payload capacity, and redundant setup. It can be equipped with a wide array of sensors; cameras, LiDAR, whatever your mission demands.
The M6 is controlled via the Acecore Signav Ultra. Users may choose between the Persistent Systems MPU5, Silvus Streamcaster, or Doodle Labs smart radio.
Payload capacity
Flight time
Wind resistance
Max. takeoff weight
6 kg / 13.2 lbs
265 minutes
25 knots
31 kg / 68.3 lbs
Frame dimensions
Flight controller
Operating temp.
Max. downfall
Cruise speed
Max. speed
1680x1680x860 mm
Cube Orange+, Blue+
-15°C to 50°C
10 mm/h, 30mm/3h
3 m/s to 9 m/s
50 km/h
Tailored to your demands.
Modular system
-
Several mounting points
-
Modular payload bay
-
Highly customizable
Anti-jamming + anti-spoofing
GNSS modules
Command and control
Training

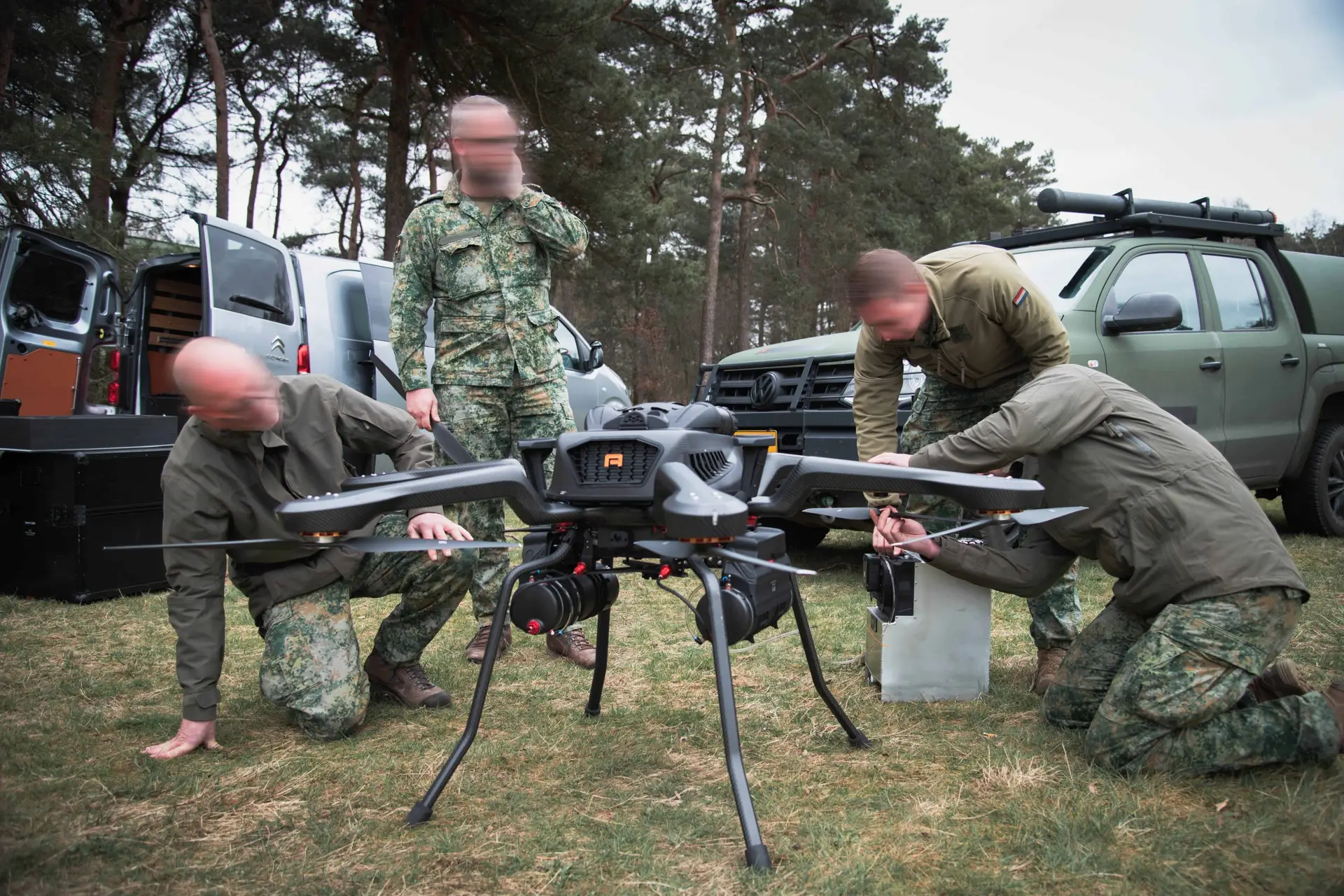

We offer on-site training. ‘Train-the-trainer’ or direct, teams can be operational after one full day. The training has a priority for preparing the pilots for many scenarios to ensure the pilots can take on any mission. Of course, the training also includes theoretical training to ensure they get the most out of your Acecore UAV.
Discuss the options

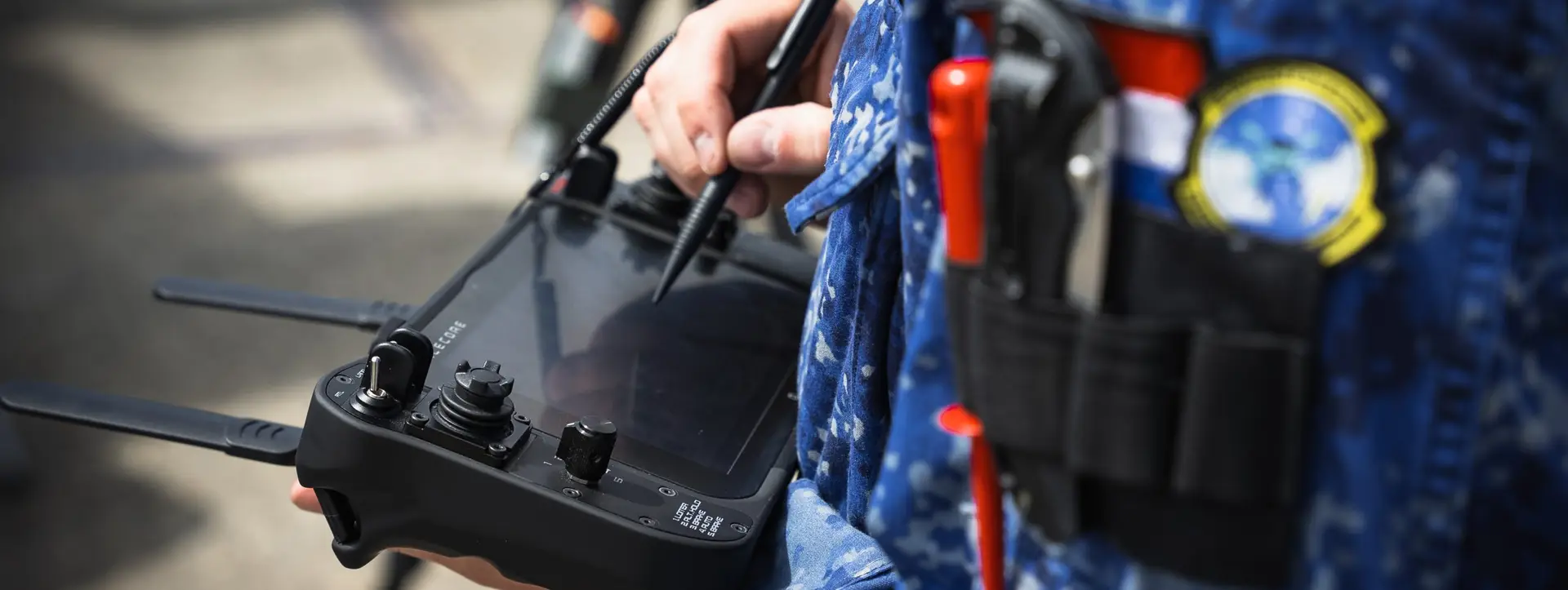

Signav Ultra
Rugged & trusted ground control station

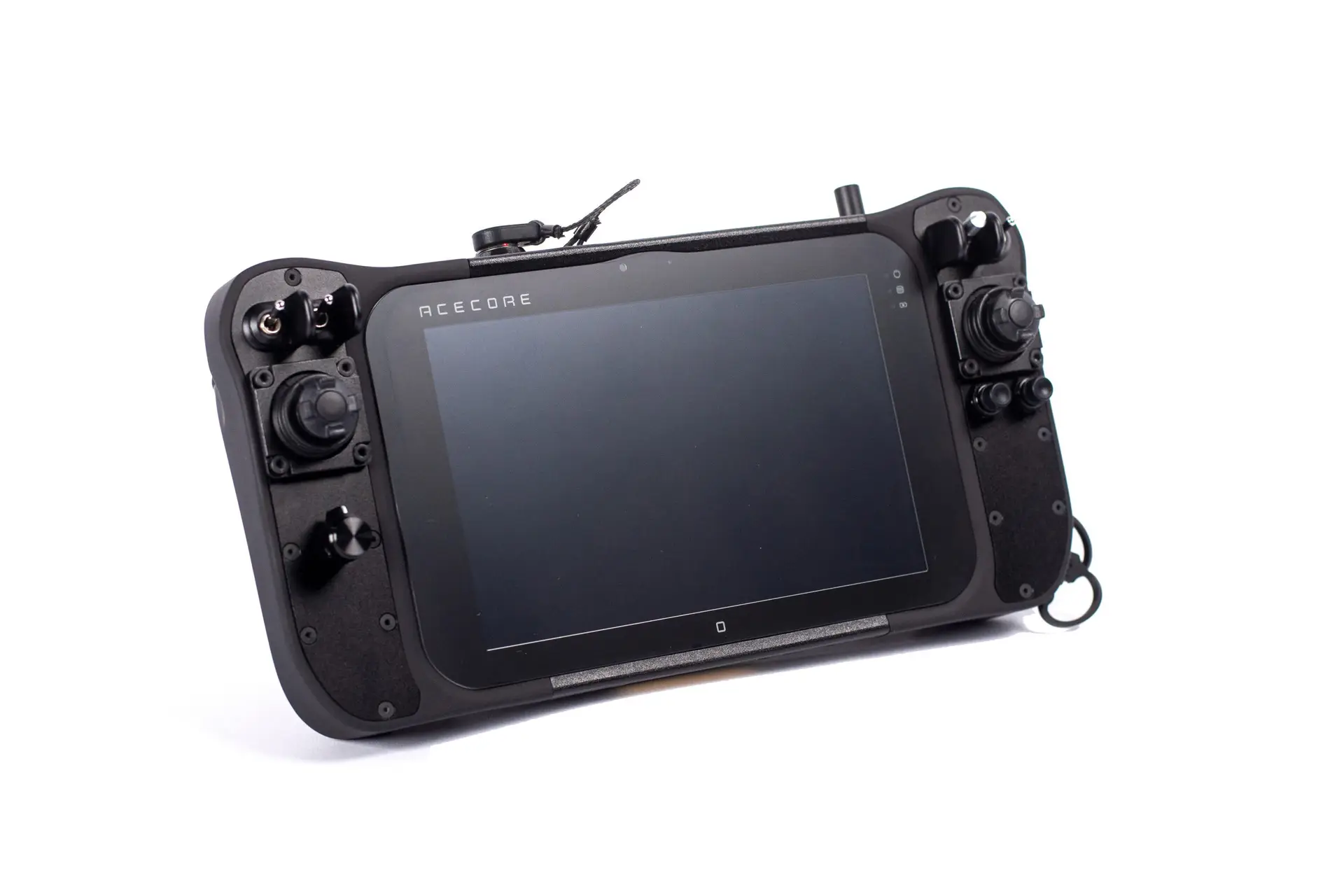

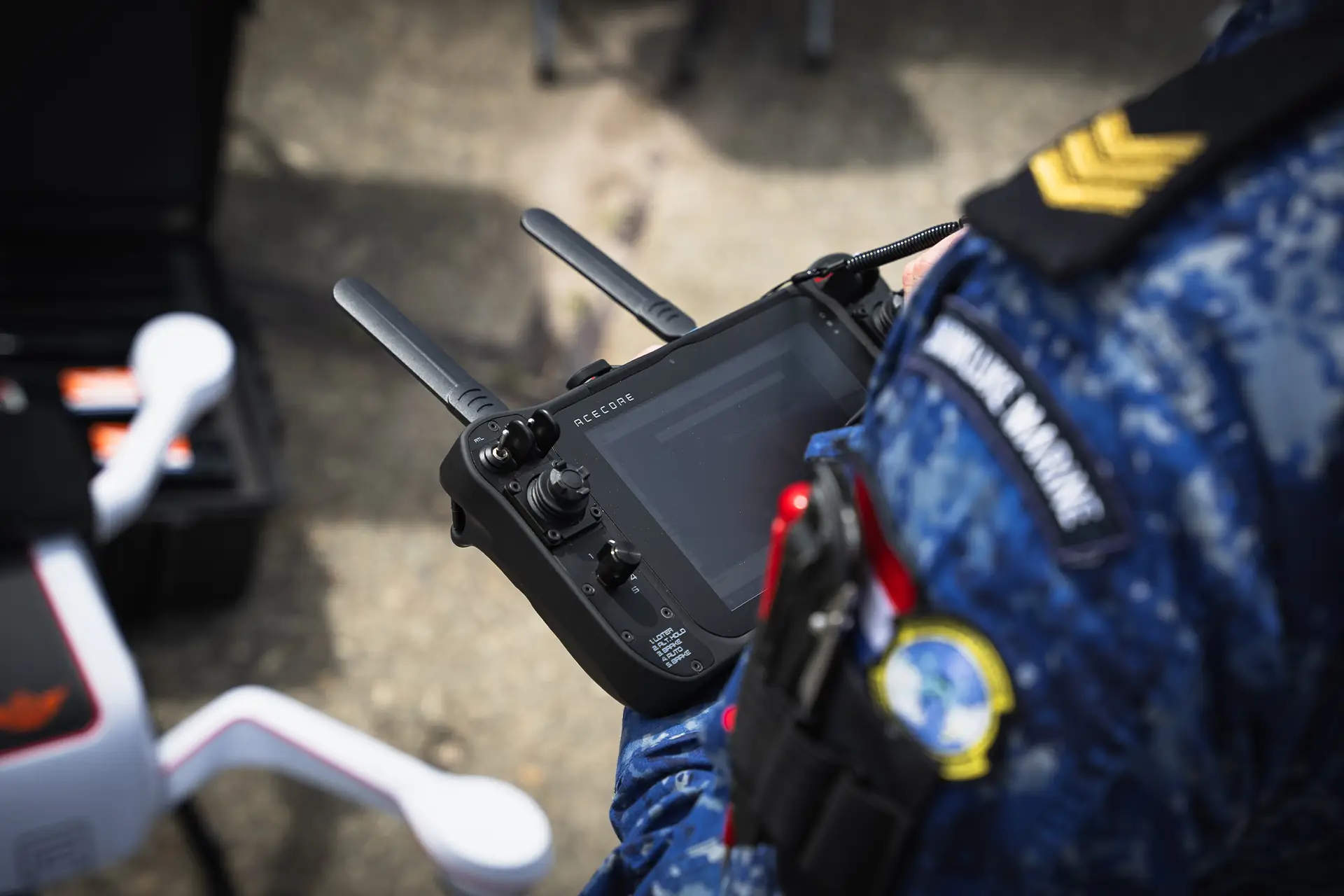

The proprietary and radio-agnostic Signav Ultra is built on the Panasonic FZ-M1. This military-grade ground station is drop, dust, and water resistant (IP65). The button layout is carefully chosen for a range of high-end ISR sensors including the NextVision Raptor X80. The remote is Windows-based with 8GB RAM and a hot-swappable battery.
Its radio is factory-configurable to fit in existing networks or selected frequency bands. Radio options include Doodle Labs Helix, Silvus Technologies, Persistent Systems MPU5, and KONGSBERG.
Payloads
A selection of proven integrations.

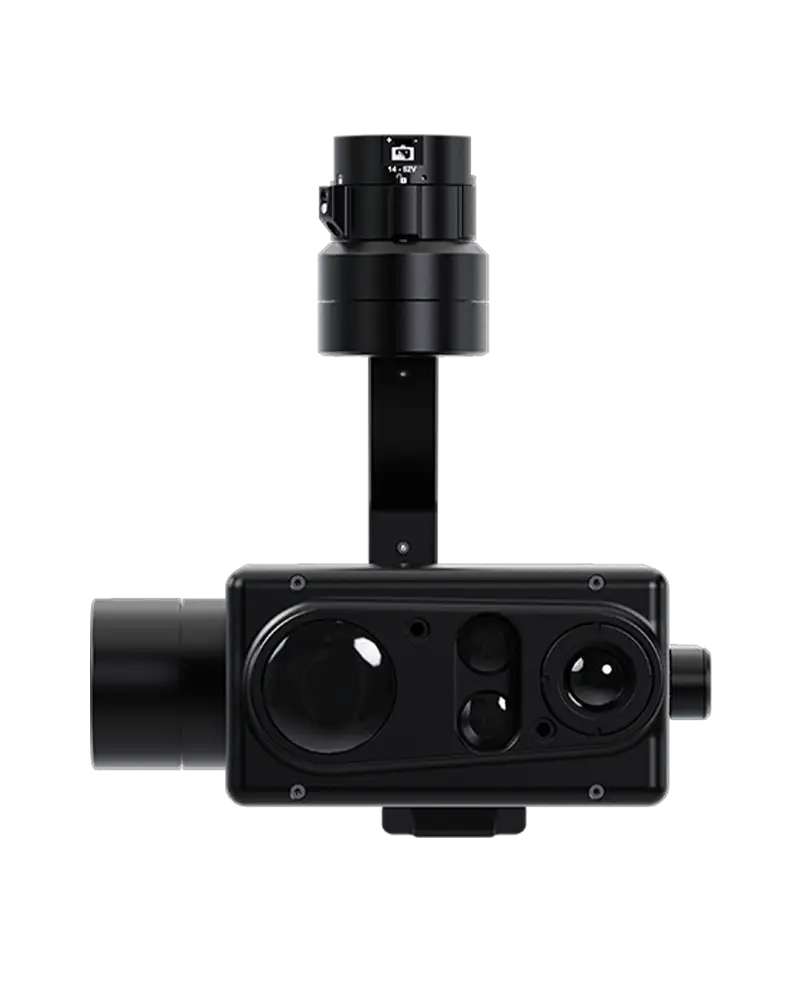

Gremsy VIO F1

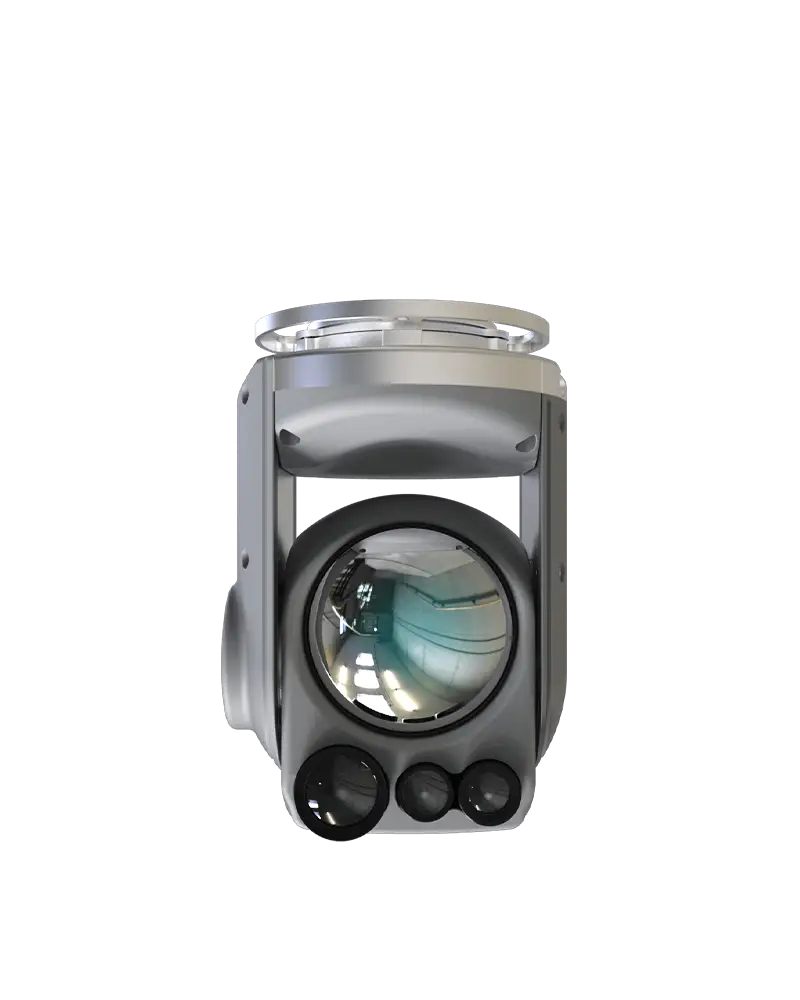

NextVision Raptor

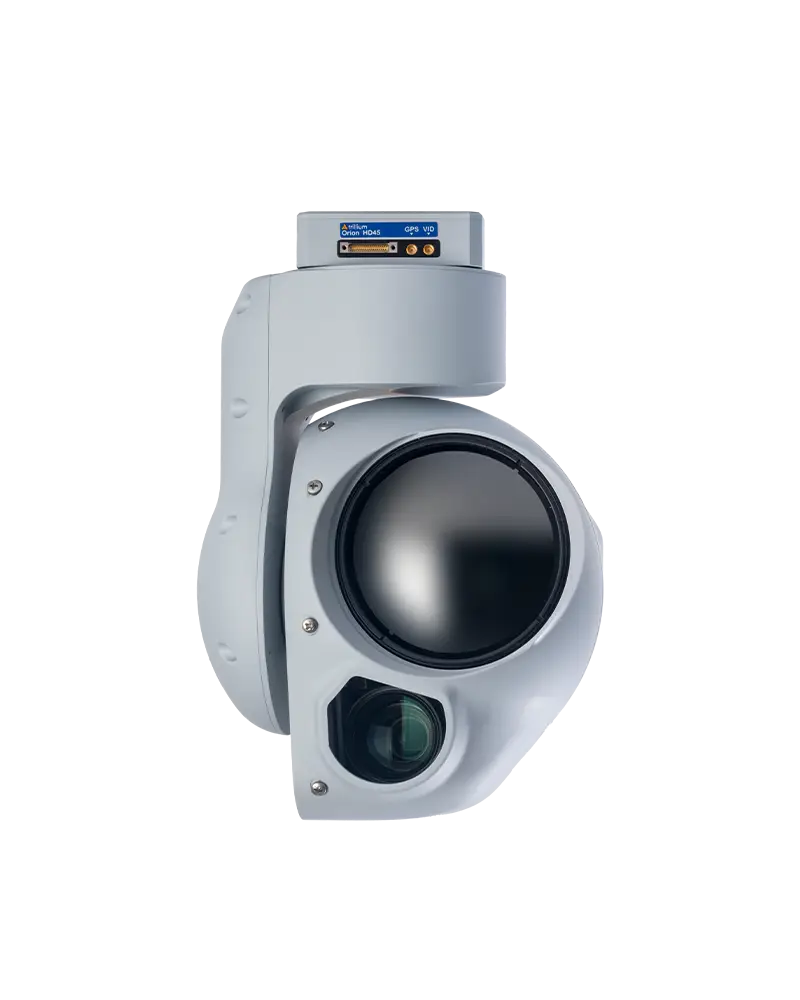

Trillium HD45
RIEGL miniVUX-3
UMAG V2Mag
Gremsy VIO F1
NextVision Raptor
Trillium HD45
RIEGL miniVUX-3
UMAG V2Mag
Other payloads or custom integrations are available, ask us for the possibilities.
Mine Detection Drone

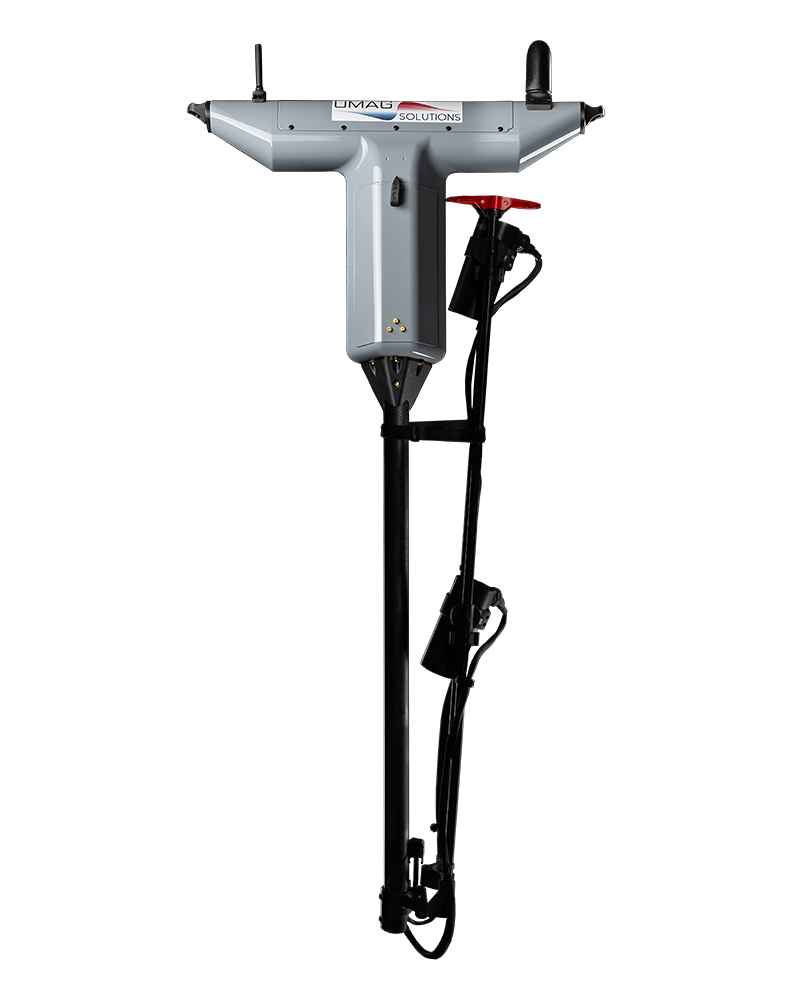

Noa + UMAG V2Mag™
Electric or Hybrid
The Noa – V2Mag™ is a complete Drone Magnetic solution. With a world-record low noise level of 0.01 nT, cm-level accuracy, Optically Pumped true gradiometry setup, rugged design, and years of commercial and military onshore and offshore validation, the V2Mag™ is the most trusted and sensitive drone magnetic mine detection technology on the market.

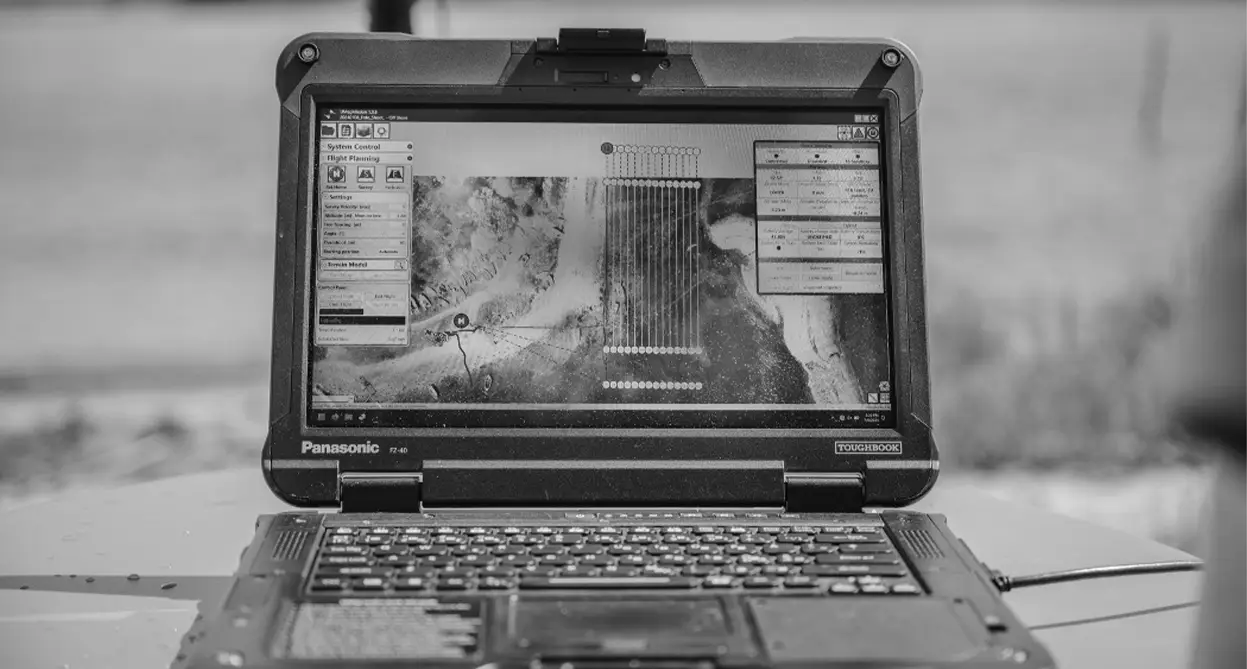

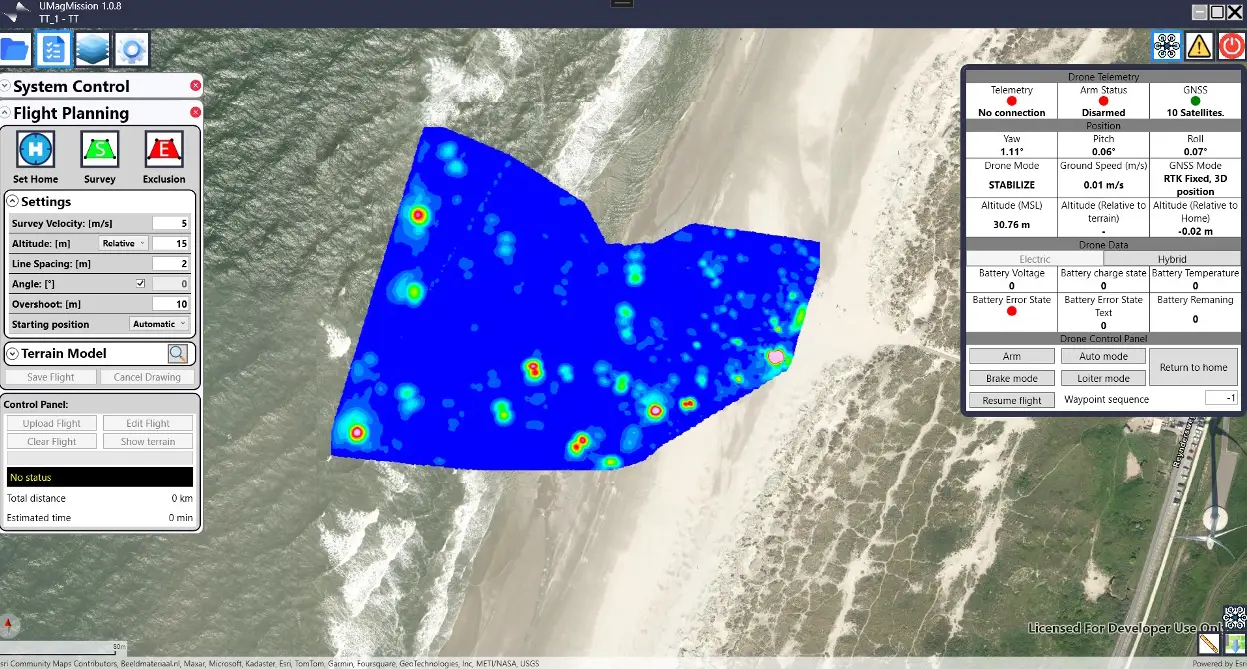

UMAGMission™
Real-time actionable data
UMAGMission™
Real-time actionable data

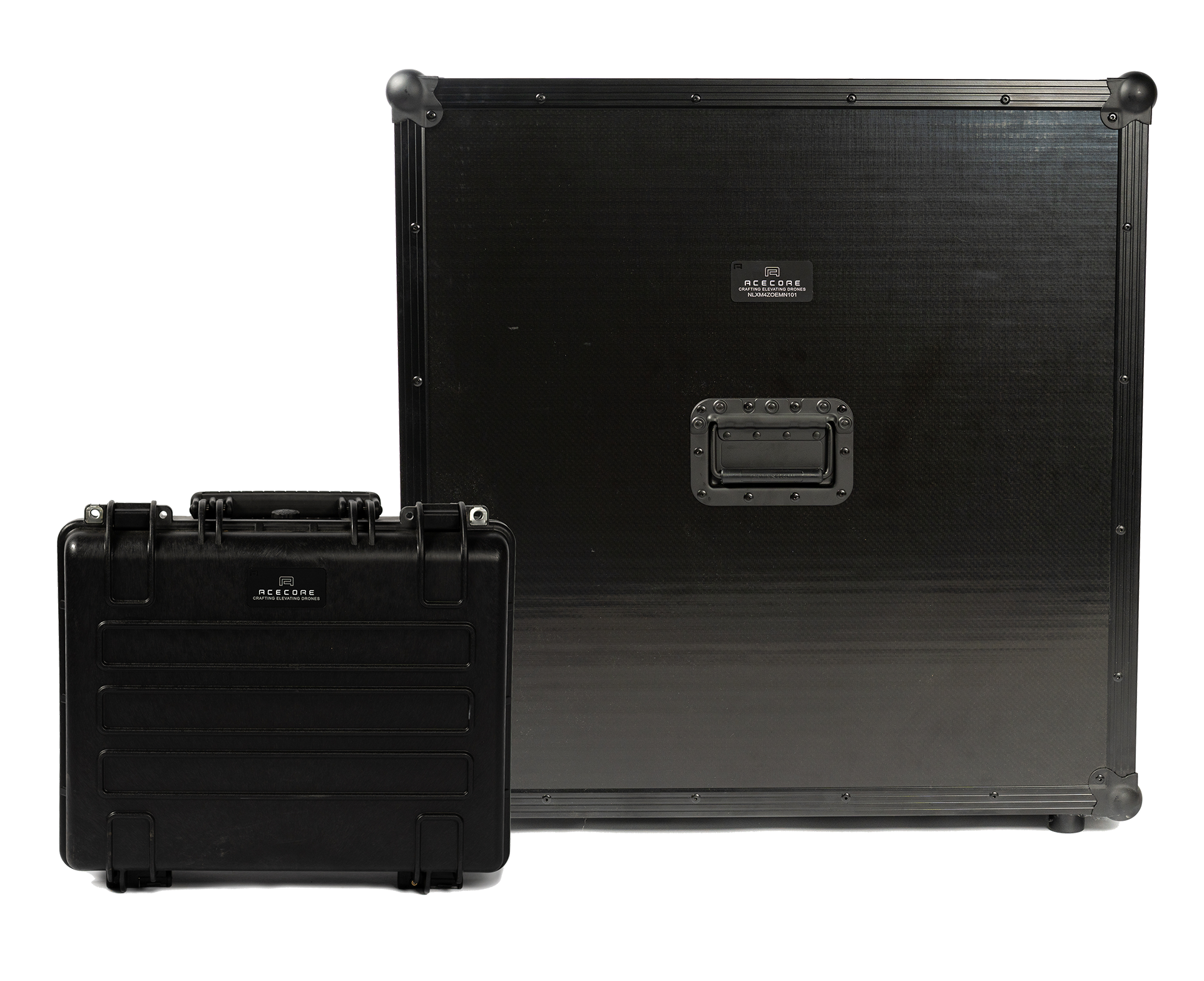

Transport case
Pick one that suits you.
We offer a range of flight cases for all items for ease of transportation and to make sure nothing gets damaged.

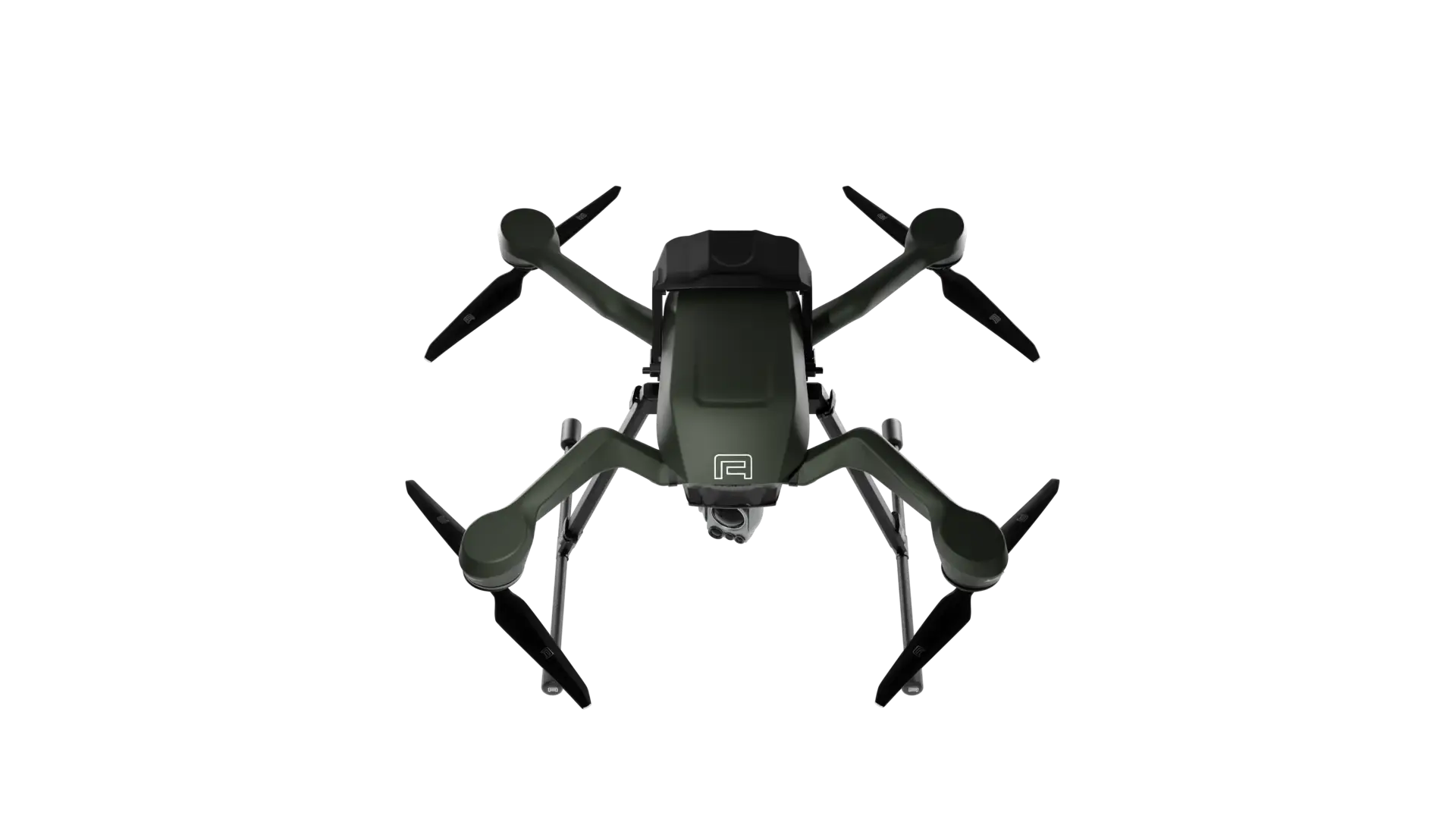

Bespoke colors
Make it stand out or blend in.
Customize your system with any Pantone color in a glossy or satin matte finish, add company logos or a custom LED configuration. Make it suit your mission.
